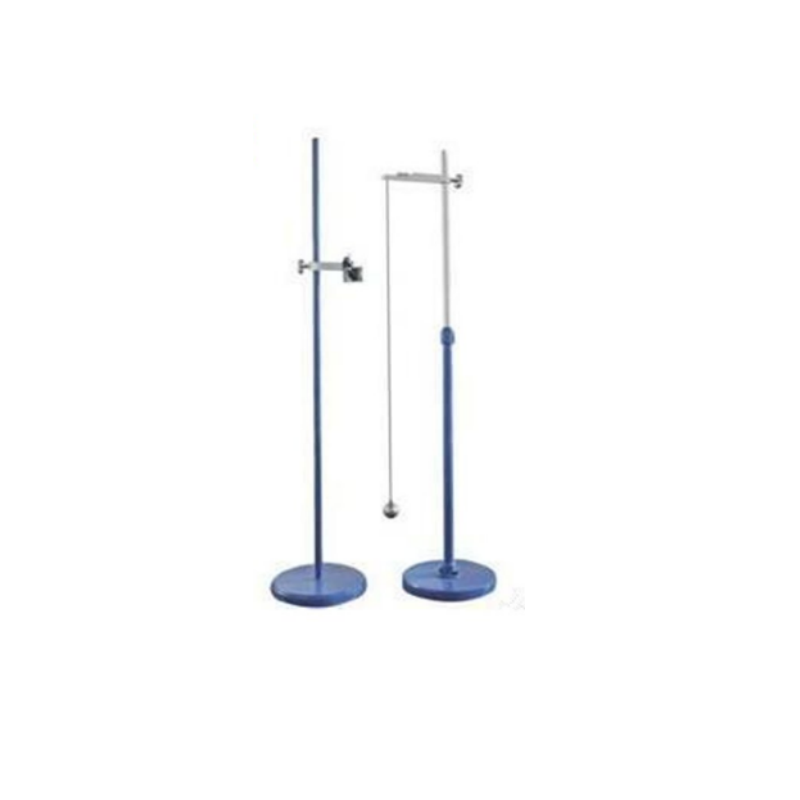

腾达试验仪器厂：外墙保温抗冲击试验仪是检测仪器，采用磁力抓球方式，高度可调，操作使用方便。整机可移动，适于在现场使用。

　　The external wall thermal shock resistance tester is a testing instrument.It adopts magnetic catching ball method,the height is adjustable,and the operation is convenient.The whole machine is mobile and suitable for use on site.

　　外墙保温抗冲击试验仪根据JGJ144-2004《外墙外保温工程技术规程》A.5和B.3条研制的实验装置。该装置可对外墙外保温系统的抗冲击性能进行实验室或现场试验。外墙保温抗冲击试验仪器使用方法：在现场检测墙体时，将挂球架立于墙边，调整好高度，使球体**点对正冲击点。将抓球架立在旁边，抓球装置高度对在挂球架上的刻度位置，高刻度距球冲击**1.02米，低刻度距球冲击**0.61米。旋转抓球装置吸住球，移动抓球架，使钢丝绳拉支，旋转抓球装置放球，冲击墙体。

　　The external wall insulation impact tester is an experimental device developed in accordance with JGJ144-2004"Technical Specifications for External Wall External Insulation Engineering"A.5 and B.3.The device can perform laboratory or field tests on the impact resistance of external insulation systems.How to use the external wall insulation and impact test instrument:When inspecting the wall on the spot,stand the ball rack on the side of the wall and adjust the height so that the ball points to the impact point.Stand the ball catcher next to it,the height of the ball catching device is on the scale position on the hanging ball rack,the high-scale impact from the ball is 1.02 meters,and the low-scale impact from the ball is 0.61 meters.The rotary ball catching device sucks the ball,moves the ball catching frame to pull the wire rope,and rotates the ball catching device to put the ball and impact the wall.

　　外墙保温抗冲击试验仪技术参数：

　　★钢球重量：0.5Kg、1Kg

　　★冲击高度调节范围：0.6~1.3米<

　　★整机A大高度：2.6米

　　Technical parameters of external wall insulation impact tester:

　　★Steel ball weight:0.5Kg,1Kg

　　★Impact height adjustment range:0.6~1.3 meters<

　　★The height of the whole machine A:2.6 meters

　　外墙保温抗冲击试验仪配置：

　　★试验架：1套

　　★试验钢球：1套

　　★磁力抓球装置：1套

　　External wall insulation impact tester configuration:

　　★Test stand:1 set

　　★Test steel ball:1 set

　　★Magnetic ball catching device:1 set
