土腾达试验仪器厂：

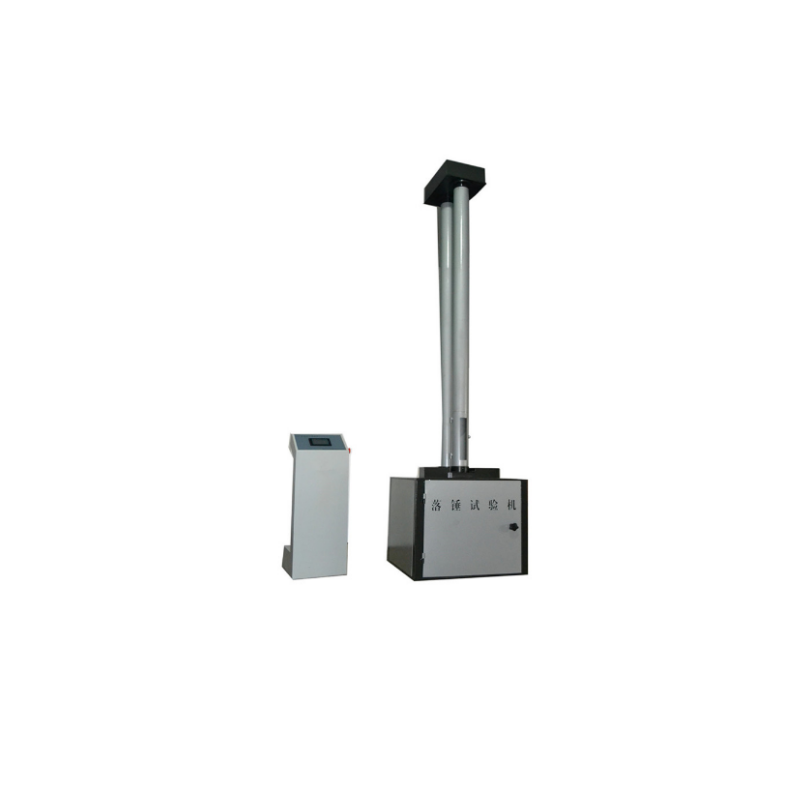

　　管材落锤冲击试验机产品简介：

　　管材落锤冲击试验机用于测定塑料管材、板材和塑料制品的抗冲击性能。产品符合JB/T 9389《落锤式冲击试验机技术条件》标准要求，亦满足：GB6112、GB11548、GB/T 14152、GB/T 5836.1、GB/T10002.1、GB/T 10002.2、GB/T13664、GB/T 16800、GB18477、QB1929、JB/T 5125等标准对试验设备的要求。该机控制部分采用PLC控制，任意设定冲击高度、自动抓锤、对零、并具有防二次冲击功能。

　　Pipe drop impact tester product introduction:

　　The pipe drop impact tester is used to determine the impact resistance of plastic pipes,sheets and plastics.The product meets the requirements of JB/T 9389"Technical Conditions for Drop Hammer Impact Tester",and also meets:GB6112,GB11548,GB/T 14152,GB/T 5836.1,GB/T10002.1,GB/T 10002.2,GB/T13664,GB/T 16800,GB18477,QB1929,JB/T 5125 and other standards for test equipment requirements.The control part of the machine adopts PLC control,which can set the impact height,automatic grab hammer,zero to zero,and has anti-secondary impact function.

　　管材落锤冲击试验机技术参数：

　　★锤体质量：0.5kg、0.8kg、1kg、1.25kg、1.6kg、2kg、2.5kg、3kg、3.2kg、4kg、5kg、6kg、6.3kg、7kg、8kg、9kg、10kg、12.5kg、15kg、16kg

　　★锤头半径：R5mm、R10mm、R30mm、R50mm、d25、d90

　　★大冲击能量：300J

　　★冲击高度：0-2000mm

　　★试样尺寸：管材φ16-φ450mm

　　★高度定位误差：±2mm

　　★显示分辨率：1mm

　　★防二次冲击捕捉率：%

　　★外形尺寸：800X800X3370mm

　　★重量：390kg

　　mer impact tester technical parameters:

　　★Hammer mass:0.5kg,0.8kg,1kg,1.25kg,1.6kg,2kg,2.5kg,3kg,3.2kg,4kg,5kg,6kg,6.3kg,7kg,8kg,9kg,10kg,12.5kg,15kg,16kg

　　★Hammer head radius:R5mm,R10mm,R30mm,R50mm,d25,d90

　　★Big impact energy:300J

　　★Impact height:0-2000mm

　　★Sample size:pipeφ16-φ450mm

　　★Height positioning error:±2mm

　　★Display resolution:1mm

　　★Anti-secondary impact capture rate:%

　　★Dimensions:800X800X3370mm

　　★Weight:390kg

　　管材落锤冲击试验机操作规程：

　　★数字显示冲击高度，具有自动吸锤、自动升降、自动防止二次冲击等功能。

　　★工作台可上下调节，具备试样自动对零位功能。

　　★提升机构采用感应刹车电机驱动，预至高度具有自动由高速变低速功能，避免了使用一个速度（高速）在到达预至高度时电机旋转产生的向前贯量，造成高度定位出现误差的可能。

　　★本机为链条传动上升与下降，链条、链轮及电机相配合，避免了使用钢丝绳上升或下降容易出现钢丝绳缠绕在一起的现象发生。

　　★采用电磁铁防二次冲击，剩去了气动防二次冲击结构用户需自备气源的困扰。

　　★该设备大冲击能量为300焦耳，存在一定的操作危险性，本公司落锤冲击试验机采用双管式结构，操作时更为安全可靠。

　　★导管为无缝钢管，管壁开槽，使得导管不易变形且锤体在下落过程中阻力较小。

　　Pipe drop impact test machine operating procedures:

　　★The digital display shows the impact height,with automatic suction hammer,automatic lifting,automatic prevention of secondary impact and other functions.

　　★The workbench can be adjusted up and down,and the sample has the function of automatic zero position.

　　★The lifting mechanism is driven by induction brake motor.The height of the advancement has the function of automatically changing from high speed to low speed.It avoids the possibility of using a speed(high speed)to reach the forward rotation when the motor reaches the preset height,which may cause errors in height positioning..

　　★This machine is for the chain drive to rise and fall,and the chain,sprocket and motor cooperate to avoid the phenomenon that the wire rope is entangled when the wire rope is raised or lowered.

　　★The electromagnet is used to prevent secondary impact,and the user who needs the self-prepared air source is left with the pneumatic anti-secondary impact structure.

　　★The equipment has a large impact energy of 300 joules and there is a certain operational risk.The drop hammer impact tester of the company adopts a double-tube structure,which is safer and more reliable during operation.

　　★The duct is a seamless steel pipe,and the pipe wall is slotted,so that the pipe is not easily deformed and the hammer has less resistance during the falling process.
