腾达试验仪器厂：

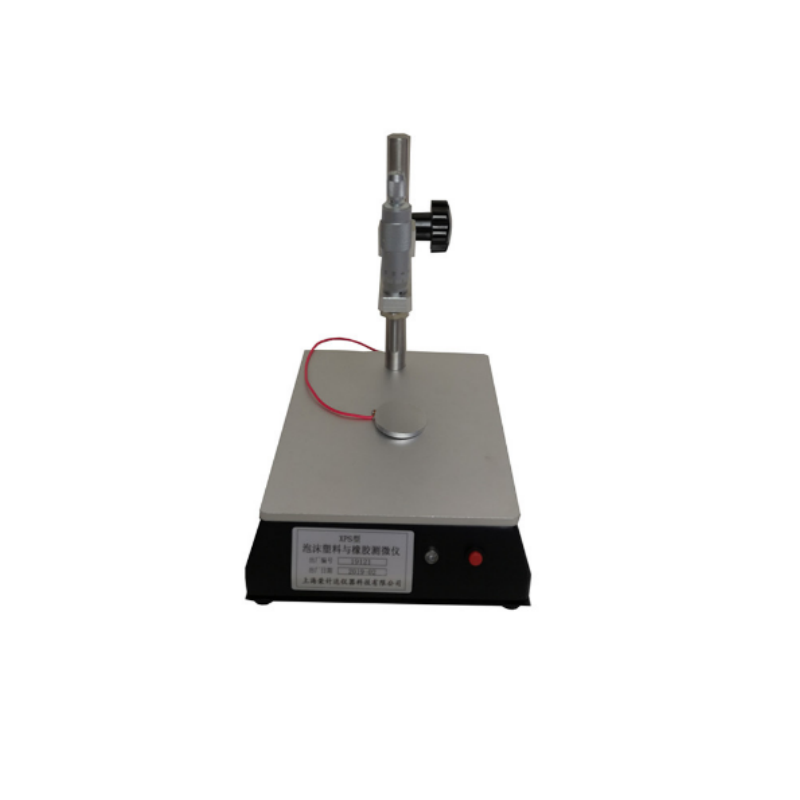

　　保温材料螺旋测微仪是专业检测仪器，适用于泡沫塑料与橡胶片、块的厚度尺寸的测定。使用前务必仔细阅读说明书。并由专业实验人员操作，以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

　　Foam and rubber micrometers are professional testing instruments for the determination of the thickness of foam and rubber sheets and blocks.Be sure to read the instructions carefully before use.It is operated by professional experimenters to avoid injury caused by improper operation.For more information,please contact our customer service staff.

　　泡沫塑料与橡胶测微仪是依据GB/T 6342-1996《泡沫塑料与橡胶线性尺寸的测定》和ISO 1923-1981《泡沫塑料与橡胶—线性尺寸的测定》标准设计制造的。

　　Foam and rubber micrometers are designed and manufactured in accordance with GB/T 6342-1996"Determination of linear dimensions of foams and rubbers"and ISO 1923-1981"Foam and rubber-Determination of linear dimensions".

　　泡沫塑料与橡胶测微仪技术参数

　　★千分尺量程：0-10mm；A小分度值：0.01mm。

　　★测量压板：厚度：3.74mm；测量面积：10cm；测量压力：100Pa

　　★测量厚度：0mm～100mm

　　★基准块规格：10mm 1块；20mm 2块；50mm 1块

　　★电池：5号；1.5V干电池2节（用户自备）

　　★外形尺寸：210mm×145mm×265mm

　　★重量：12kg

　　Foam and rubber micrometer technical parameters

　　★Micrometer range:0-10mm;A small division value:0.01mm.

　　★Measurement platen:thickness:3.74mm;measurement area:10cm;measurement pressure:100Pa

　　★Measure thickness:0mm~100mm

　　★Reference block specification:10mm 1 piece;20mm 2 piece;50mm 1 piece

　　★Battery:No.5;1.5V dry battery 2 sections(user-supplied)

　　★Dimensions:210mm×145mm×265mm

　　★Weight:12kg
