腾达试验仪器厂：

　　一、产品简介：

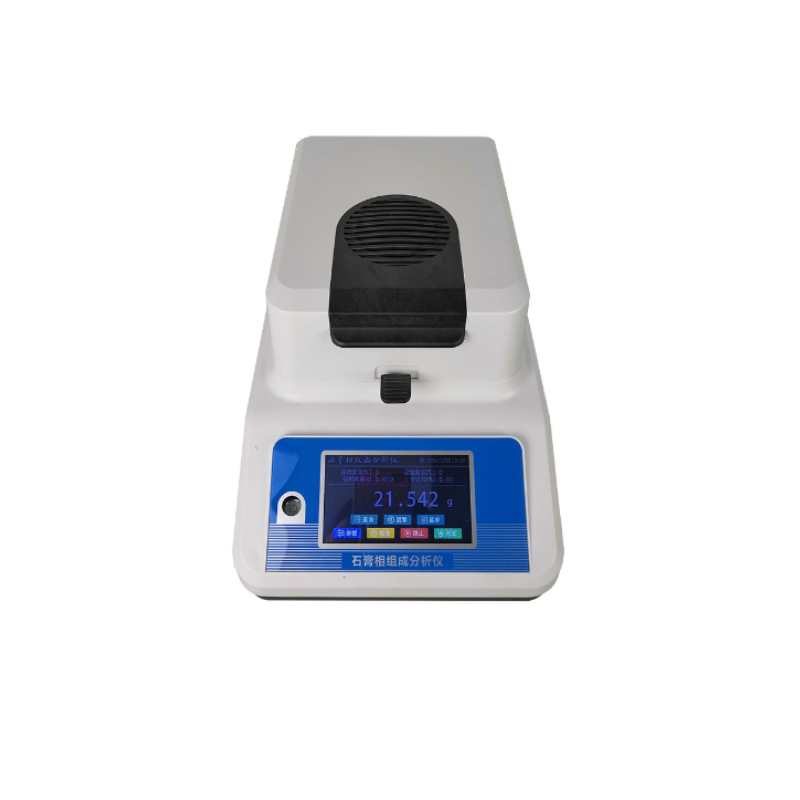

　　目前石膏相组成分析方法常用为烘干失重法，根据烘干前后的质量差，来计算石膏的无水、半水、二水值，来判断石膏的品位。但这种方法测试过程极长，且全程需要人工反复称重和计算，极易产生人为误差。石膏相组成分析仪采用国标烘干法原理为基础，通过自带高精度称量装置及快速均匀的烘干装置，实现石膏相组成的全自动快速分析。

　　1.Product introduction:

　　At present,the gypsum phase composition analysis method is commonly used as the drying weight loss method.According to the quality difference before and after drying,the anhydrous,semi-aqueous,and dihydrate values of gypsum are calculated to judge the grade of gypsum.However,the test process of this method is extremely long,and the whole process requires manual weighing and calculation repeatedly,which is very easy to produce human errors.The gypsum phase composition analyzer is based on the principle of the national standard drying method.Through its own high-precision weighing device and a fast and uniform drying device,it realizes the automatic and rapid analysis of the gypsum phase composition.

　　二、仪器原理：

　　★热失重分析法

　　★占用空间：0.25㎡左右

　　★测量时间：3小时以内（一般2.5H左右）

　　★测试环境：无特殊要求

　　★测试过程：全自动

　　★数据记录:自带存储、另可连接电脑端存储

　　2.Instrument principle:

　　★Thermal weight loss analysis method

　　★Occupied space:about 0.25 square meters

　　★Measurement time:within 3 hours(usually around 2.5H)

　　★Test environment:no special requirements

　　★Test process:fully automatic

　　★Data record:comes with storage,and can be connected to computer storage

　　三、产品优势：

　　★良好的温度控制，全铝底座，传感器四层隔热措施，热循环对流模式设计，大大降低了传感器的温漂，提高了仪器的测量精度和重复性

　　★样品受热均匀

　　★全自动测试，操作简单

　　★卓越的升温/冷却性能

　　★快速测定

　　★可进行大量样品分析

　　★仪器占用空间极小

　　3.Product advantages:

　　★Good temperature control,all-aluminum base,four-layer heat insulation measures for the sensor,and thermal cycle convection mode design,which greatly reduces the temperature drift of the sensor and improves the measurement accuracy and repeatability of the instrument

　　★The sample is heated evenly

　　★Fully automatic test,simple operation

　　★Excellent heating/cooling performance

　　★Quick determination

　　★A large number of samples can be analyzed

　　★The instrument takes up very little space

　　四、符合标准：

　　GB/T36141-2018建筑石膏相组成分析方法

　　GB/T_17669.2-1999建筑石膏_结晶水含量的测定

　　GB/T29249-2012电子称量式烘干法水分测定仪

　　GB/T5484-2000石膏化学分析方法

　　F-HZ-DZ-FJSK-0101非金属矿（石膏）结晶水的测定-质量法

　　Four,meet the standards

　　GB/T36141-2018 Building Gypsum Phase Composition Analysis Method

　　GB/T_17669.2-1999 Building gypsum_Determination of crystal water content

　　GB/T29249-2012 Electronic Weighing Drying Method Moisture Analyzer

　　GB/T5484-2000 Gypsum chemical analysis method

　　F-HZ-DZ-FJSK-0101 Non-metallic mineral(gypsum)crystal water determination-mass method

　　五、技术参数：

　　★测量时间：三相总时长2.5H左右（*步无水相/附着水800-1000秒）

　　★检测模式：测试模式（水份、三相、纯度、结晶水）

　　★多功能一体机：测量指标包括：三相含量、附着水/结晶水、石膏品位、含水率/固含量

　　★三相测定结果：吸附水、无水石膏AIII、水化增量、半水石膏HH、脱水量、二水石膏DH

　　★称重传感器：进口传感器

　　★加热光源：特制环形加热光源

　　★加热程序：快速

　　★*功能：自动计时，智能开启测量

　　★数据存储：仪器自带存储功能，查阅*近50组测量数据，无需连接电脑

　　★显示曲线：同时显示三条测试曲线(包括水份M、重量W、温度T）

　　★样品盘尺寸：直径100（mm）

　　★屏幕：4.3英寸高清高分辨率触摸电容屏，交互式菜单设计，客户方便使用

　　★通讯接口：1.标准RS232 2.USB接口数据导出

　　★称量范围：0-100g

　　★称量精度值：0.001g

　　★数据精度值：0.01%

　　★温度范围：起始-240℃

　　★数据测定范围：0-%

　　★打印接口：无线蓝牙信号输出

　　★选配：可扩展无线云存

　　5.Technical parameters:

　　★Measuring time:The total time of three-phase is about 2.5H(the first step is no water phase/adhered water 800-1000 seconds)

　　★Detection mode:test mode(moisture,three-phase,purity,crystal water)

　　★All-in-one machine:measurement indicators include:three-phase content,attached water/crystal water,gypsum grade,moisture content/solid content

　　★Three-phase measurement results:adsorbed water,anhydrous gypsum AIII,hydration increment,hemihydrate gypsum HH,dehydration amount,dihydrate gypsum DH

　　★Weighing sensor:imported sensor

　　★Heating light source:special ring heating light source

　　★Heating program:fast

　　★Countdown function:automatic timing,intelligent start measurement

　　★Data storage:The instrument has its own storage function,which can consult the latest 50 groups of measurement data without connecting to a computer

　　★Display curve:simultaneously display three test curves(including moisture M,weight W,temperature T)

　　★Sample pan size:diameter 100(mm)

　　★Screen:4.3-inch high-definition high-resolution touch capacitive screen,interactive menu design,convenient for customers to use

　　★Communication interface:1.Standard RS232 2.USB interface data export

　　★Weighing range:0-100g

　　★Weighing accuracy value:0.001g

　　★Data accuracy value:0.01%

　　★Temperature range:starting-240℃

　　★Data measurement range:0-%

　　★Printing interface:wireless Bluetooth signal output

　　★Optional:Scalable wireless cloud storage
