腾达试验仪器厂：

　　一、反光膜防粘纸可剥离性能测试仪性能特点：

　　是专为生产、质量监督、工程施工和监理等单位测试反光膜耐弯曲性能而设计和生产的。具有结构合理、操作简单、适用性广、测量安全及可靠性好等特点。

　　STT-106反光膜防粘纸可剥离性能测试仪符合我国国家标准GB/T18833-2012《公路交通标志反光膜》及JT/T687-2007《反光膜防粘纸可剥离性能测试仪》的测定要求。

　　First,reflective film release paper peelability performance tester performance characteristics:

　　It is specially designed and produced for testing the bending resistance of reflective film for production,quality supervision,engineering construction and supervision.It has the characteristics of reasonable structure,simple operation,wide applicability,safe measurement and good reliability.

　　STT-106 reflective film anti-adhesive paper peeling performance tester meets the requirements of China National Standard GB/T18833-2012"Highway Traffic Marking Reflective Film"and JT/T687-2007"Reflective Film Release Paper Peelable Performance Tester".

　　二、反光膜防粘纸可剥离性能测试仪主要技术参数：

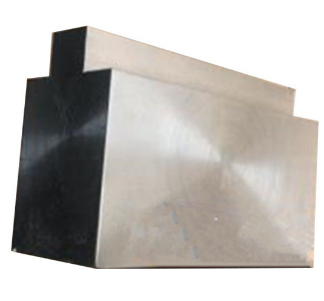

　　1、重锤质量：6600g±33g

　　2、重锤外形尺寸：

　　a)重锤顶部：长（150±10）mm，宽（63±5）mm，高（80±5）mm。

　　b)重锤底部：长（150±10）mm，宽（25±5）mm，高（20±5）mm。

　　Second,the main technical parameters of the reflective film release paper peelability tester:

　　1.Weight of hammer:6600g±33g

　　2,the weight of the hammer:

　　a)Top of the weight:long(150±10)mm,width(63±5)mm,height(80±5)mm.

　　b)The bottom of the weight:long(150±10)mm,wide(25±5)mm,high(20±5)mm.

　　三、反光膜防粘纸可剥离性能测试仪结构组成：

　　STT-106反光膜防粘纸可剥离性能测试仪主要由重锤、等部件组成。（长度测量工具、时间间隔测量仪选配）。

　　Third,the reflective film release paper peelability performance tester structure:

　　STT-106 reflective film release paper peelability tester is mainly composed of heavy hammer and other components.(length measuring tool,time interval measuring instrument optional).

　　四、反光膜防粘纸可剥离性能测试仪操作步骤

　　裁取25mm×150mm的反光膜试样，在其上放置符合JT/T687要求的6600g±33g重锤，使反光膜受到17.2kPa的压力，然后置于70℃±2℃的空间里放置4h。取出反光膜，在标准测试条件下使之冷却到室温。试验后，反光膜无需用水或其他溶剂浸湿，防粘纸即可方便的手工剥下，且无破损、撕裂或从反光膜上带下粘合剂等损坏出现。

　　Fourth,reflective film release paper peelability performance tester steps

　　A 25 mm×150 mm reflective film sample was cut,and a 6600 g±33 g weight hammer conforming to JT/T687 was placed thereon,and the reflective film was subjected to a pressure of 17.2 kPa,and then placed in a space of 70°C±2°C for 4 hours.The retroreflective film was removed and allowed to cool to room temperature under standard test conditions.After the test,the reflective film is not wetted with water or other solvents,and the anti-adhesive paper can be easily peeled off by hand without damage,tearing or taking off the adhesive from the reflective film.

　　五、反光膜防粘纸可剥离性能测试仪注意事项：

　　1、为了确保试验重锤的准确，应妥善保管并定期检验；

　　2、试验时，取放重锤应小心轻放，以防滑手跌落；

　　Five,reflective film anti-adhesive paper peelability performance tester notes

　　1.In order to ensure the accuracy of the test weight,it should be properly kept and regularly inspected;

　　2.When testing,the heavy hammer should be handled with care and dropped by the non-slip hand;

　　六、反光膜防粘纸可剥离性能测试仪贮存保管：

　　该仪器及其附件应存放在干燥清洁、稳固无振动、无易腐蚀物品及气体的环境条件中。

　　Sixth,reflective film release paper peelability performance tester storage and storage

　　The instrument and its accessories should be stored in an environment that is dry,clean,stable,vibration-free,free of corrosive materials and gases.
