腾达试验仪器厂：

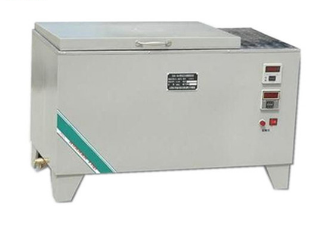

　　砖瓦爆裂蒸煮箱是检测仪器，用于烧结普通砖、烧结多孔砖、空心砖和空心砌块砖、烧结粘土砖、免烧砖、粉煤灰砖、炉渣砖和碳化砖等的爆裂、吸水率、安定性、水中加热试验。使用前务必仔细阅读说明书。并由专业实验人员操作，以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

　　The brick burst cooking box is a professional testing instrument for bursting and absorbing water of ordinary bricks,sintered porous bricks,hollow bricks and hollow block bricks,sintered clay bricks,burn-free bricks,fly ash bricks,slag bricks and carbonized bricks.Rate,stability,water heating test.Be sure to read the instructions carefully before use.It is operated by professional experimenters to avoid injury caused by improper operation.For more information,please contact our customer service staff.

　　砖瓦爆裂蒸煮箱按GB/T5101-1998《烧结普通砖》和GB/T2542-2003《砌墙砖试验方法》中关于砖瓦的石灰爆烈试验而设计制造的，能自动控制箱内温湿度，由上海荣计达仪器科技有限公司提供，是检测砖瓦产品质量的设备之一。设备质保期一年，一年内产品如有质量问题，供方负责免费维修。如果因操作不当或者人为损坏，我公司亦应提供维修、更换服务，由此产生的费用我公司会酌情收取。

　　The brick blasting cooking box is designed and manufactured according to GB/T5101-1998"Sintered ordinary brick"and GB/T2542-2003"wall-wall brick test method"for the lime-burst test of brick and tile,which can automatically control the temperature and humidity inside the box.Provided by Shanghai Rongjida Instrument Technology Co.,Ltd.,it is one of the equipment for testing the quality of brick and tile products.The equipment warranty period is one year.If the product has quality problems within one year,the supplier is responsible for free maintenance.If the operation is improper or man-made damage,our company should also provide repair and replacement services,and the expenses incurred by the company will be charged as appropriate.

　　砖瓦爆裂蒸煮箱技术参数：

　　★电压：AC220V

　　★功率：3KW+1KW

　　★温度：调到沸点

　　★升温时间：小于40分钟

　　★内尺寸：550×330×400

　　★外形：350×830×550mm

　　Brick tile burst cooking box technical parameters:

　　★Voltage:AC220V

　　★Power:3KW+1KW

　　★Temperature:adjust to boiling point

　　★Heating time:less than 40 minutes

　　★Inner size:550×330×400

　　★Shape:350×830×550mm

　　砖瓦爆裂蒸煮箱适用范围:

　　1、烧结普砖2、空心砖3、烧结粘土瓦4、空心砌块

　　使用性能

　　1、石灰爆裂试验2、吸水率3、水中加热

　　Brick burst cooking box

　　1.Sintered brick 2.Hollow brick 3.Sintered clay tile 4.Hollow block

　　Performance

　　1.Lime burst test 2.Water absorption rate 3.Heating in water

　　砖瓦爆裂蒸煮箱使用方法（使用时请详细阅读说明书）

　　★在箱内放足所需试验的清水（参考国标510）再放入试件盖上盖子。

　　★在水封箱内放清水，放气口可安一短管。

　　★接通电源进行加热。

　　★当达到温度后，调节定时器使试验时间自动停止工作。

　　How to use the brick bursting cooking box(please read the instructions carefully when using)

　　★Put the required test water in the box(refer to GB 510)and put the test piece on the cover.

　　★Put water in the water seal box,and the air outlet can be short.

　　★Turn on the power to heat.

　　★When the temperature is reached,the adjustment timer will automatically stop the test time.

　　砖瓦爆裂蒸煮箱调整方法:

　　★在正式使用前，首先检查电源情况、绝缘电阻及接地线。

　　★先空箱放入清水将温度计调到100℃。

　　★在调好以后，就可进行工作，在箱内温度恒温后，绿灯自动停止（表示停止加温）；红灯亮，如果需要自动断电可将计时器进行调节，方法如下：按计时器，如设定30分钟，即设置成“0030”然后打开开关设定如温度即可计时。

　　★本蒸煮箱是常压容器，不能做受压试验，因此有些蒸汽泄出。

　　Brick tile burst cooking box adjustment method

　　★Before the official use,first check the power supply,insulation resistance and grounding wire.

　　★Put the thermometer in the empty box and set the thermometer to 100°C.

　　★After adjusting,you can work.After the temperature in the box is constant,the green light stops automatically(indicating stop heating);the red light is on,if you need automatic power off,you can adjust the timer as follows:press timer If it is set for 30 minutes,it is set to"0030"and then the switch setting such as temperature can be turned on.

　　★This cooking box is an atmospheric pressure container and cannot be subjected to a pressure test,so some steam is released.

　　砖瓦爆裂蒸煮箱维护与保养:

　　★本产品电热元件标在PH值等于的水中寿命大于1000小时，在有化学成分的水中寿命将相应减少，因此应在每次试验后，将水放净、擦净。

　　★使用前应检查绝缘电阻和箱体接地情况。

　　★不允许不加水干烧。

　　★温度计应随时调节，保证可靠的自动控制。

　　★仪器接地要良好。

　　Brick tile explosion cooking box maintenance and maintenance

　　★The electric heating element of this product is marked with a life of more than 1000 hours in water with a PH value equal to 0.5 hours.The life of the chemical component in the water will be reduced accordingly.Therefore,the water should be cleaned and wiped clean after each test.

　　★Check the insulation resistance and the grounding of the cabinet before use.

　　★Do not allow to dry without water.

　　★The thermometer should be adjusted at any time to ensure reliable automatic control.

　　★The instrument should be grounded well.
