腾达试验仪器厂：

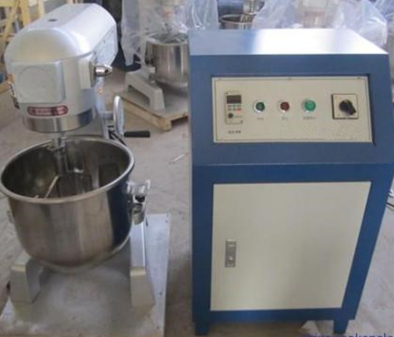

　　砌墙砖抗压强度试样制搅拌机是检测仪器，适用于工业与民用建筑砌墙砖抗压强度制备用试验设备。使用前务必仔细阅读说明书。并由**实验人员操作，以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

　　The compressive strength mixer for masonry bricks is a testing instrument,which is suitable for testing equipment for the compressive strength of industrial and civil building masonry bricks.Be sure to read the instructions carefully before use.It is operated by**experimental personnel to avoid injury caused by improper operation.For more information,please contact our customer service staff.

　　砌墙砖抗压强度试样制搅拌机根据GB/T 25044-2012《砌墙砖抗压强度试样制备设备通用要求》技术规程设计生产的新型强度试验搅拌设备。是拌制净浆的专用设备，控制系统采用程控变频技术，具备转速连续可调、数字显示、外型美观、操作方便等优点。

　　The compressive strength mixer for masonry bricks is a new type of strength testing mixing equipment designed and manufactured in accordance with the technical regulations of GB/T 25044-2012"General requirements for compressive strength sample preparation equipment for masonry bricks".It is a special equipment for mixing pure pulp.The control system uses program-controlled frequency conversion technology,which has the advantages of continuously adjustable speed,digital display,beautiful appearance and convenient operation.

　　砌墙砖抗压强度试样制搅拌机技术参数：

　　★利用搅拌臂与搅拌锅之间的相对运动砌墙砖抗压强度试验用浆搅拌的装置。

　　★额定电压：380V

　　★搅拌锅额定容量:23.6L

　　★搅拌容量；20L

　　★额定频率：50HZ

　　★额定功率：2.5KW

　　★搅拌转速：（分为三个档）I档45r/min II档90R/min III档150r/min

　　Technical parameters of compressive strength mixer for masonry bricks:

　　★It is a device for stirring mortar for the compressive strength test of wall bricks by using the relative movement between the stirring arm and the stirring pot.

　　★Rated voltage:380V

　　★Stirred pot capacity:23.6L

　　★Stirring capacity;20L

　　★Rated frequency:50HZ

　　★Rated power:2.5KW

　　★Stirring speed:(divided into three gears)I gear 45r/min II gear 90R/min III gear 150r/min

　　砌墙砖抗压强度试样制搅拌机操作过程:

　　使用前把搅拌机放到水平的工作台上面，把搅拌机与操作柜电源连接好,然后按下启动开关再慢慢旋转调速开关，搅拌开始。

　　Operation process of compressive strength mixer for masonry bricks:

　　Before use,place the mixer on a horizontal workbench,connect the mixer to the power supply of the operation cabinet,then press the start switch and then slowly rotate the speed switch to start mixing.

　　砌墙砖抗压强度试样制搅拌机注意事项：

　　1、使用前要仔细阅读说明书，严格按操作规程使用。

　　2、开机前必须接好接地线装置，工作中A随意拆除，以免发生触电。

　　3、机器工作时，手不准伸入搅拌锅内，以免发生意外。

　　4、发现机器有故障应立即停机，找**人员检查。

　　5、搅拌完成后将料桶及搅拌叶拆下后清洗，凉干保存。

　　6、搅拌锅拆，装时一定要轻拿轻放，以免磕碰变形无法正常使用。

　　Notes on compressive strength mixer for masonry bricks:

　　1.Read the instructions carefully before use,and use them strictly in accordance with the operating procedures.

　　2.The grounding wire device must be connected before starting up,and A is removed at work to avoid electric shock.

　　3.When the machine is working,do not put your hand into the mixing pot to avoid accidents.

　　4.If the machine is found to be faulty,stop the machine immediately and ask the inspector for inspection.

　　5.After the stirring is completed,remove the bucket and the stirring leaves,wash them,and store them dry.

　　6.Disassemble the mixing pot.Be sure to handle it gently during installation to avoid bumping and deforming and preventing normal use.
