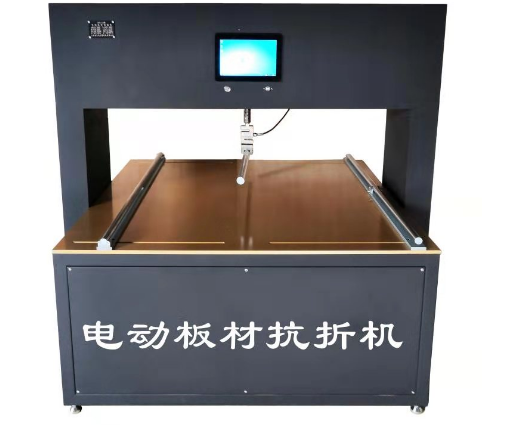

腾达试验仪器厂：

　　一、产品简介：

　　适用于各类板材抗折强度试验机，试验机外观精美、工艺细腻，采用伺服控制系统，可实现匀速加载效率高稳定性好。采用触摸屏控制，友好的人机操作界面。仪器内部设有行程限位和正负加载保护功能。具有测试速度可调、负荷测量精度高、操作方便等特点。适用于工厂、建筑工程质量检测站、建筑公司、产品质量检验所、科研院校、生产检验、开发研究等领域。

　　First,the product introduction:

　　Applicable to all kinds of sheet bending strength testing machine,the testing machine is exquisite in appearance and exquisite in craftsmanship.It adopts servo control system,which can achieve uniform loading efficiency and high stability.With touch screen control,friendly man-machine interface.The instrument has a travel limit and positive and negative load protection inside.It has the characteristics of adjustable test speed,high load measurement accuracy and convenient operation.Applicable to factories,construction engineering quality inspection stations,construction companies,product quality inspection institutes,research institutes,production inspection,development research and other fields.

　　二、特点：

　　嵌入式Widows操作系统环境的测控软件，实时显示测试数据、曲线、试验过程自动控制，试验结束自动求取试验结果、软件简便易用；

　　采用电脑控制，可实现力速度、位移速度、编程三种加载方式，可满足不同标准试验要求。

　　采用伺服控制系统，控制检测过程。

　　试验机内部设有行程限位和正负力值过载保护功能，防止误操作引起试验机的损坏。

　　Second,the characteristics:

　　The embedded Widows operating system environment measurement and control software,real-time display of test data,curves,automatic control of the test process,the test results are automatically obtained at the end of the test,the software is simple and easy to use;

　　With computer control,it can realize three kinds of loading modes:force speed,displacement speed and programming,which can meet different standard test requirements.

　　The servo control system is used to precisely control the inspection process.

　　The test machine is internally provided with a travel limit and a positive and negative force value overload protection function to prevent damage to the test machine caused by misoperation.

　　三、符合标准：

　　GBT 9775-2008纸面石膏板（加荷速度：4.2N/S）

　　JS/T 799-2016装饰石膏板（加荷速度：4.9N/S）

　　GBT7019-2014纤维水泥制品试验方法

　　JCT746-2007混凝土瓦

　　GBT 3810.4-2016陶瓷砖试验方法第4部分：断裂模数和破坏强度的测定

　　GBT 3810.4-2016陶瓷砖试验方法第四部分：断裂模数和破坏强度的测定

　　GBT 17657-2013人造板及饰面人造板理化性能试验方法

　　Third,in line with the standard:

　　GBT 9775-2008 plasterboard(loading speed:4.2N/S)

　　JS/T 799-2016 Decorative plasterboard(loading speed:4.9N/S)

　　GBT7019-2014 Test method for fiber cement products

　　JCT746-2007 concrete tile

　　Test methods for ceramic tiles-Part 4:Determination of modulus of rupture and strength

　　Test method for ceramic tiles GBT 3810.4-2016 Part 4:Determination of rupture modulus and failure strength

　　GBT 17657-2013 Test method for physical and chemical properties of wood-based panels and veneered panels

　　四、技术参数：

　　★大拉拔力：10KN

　　★有效检测范围：大实验力的1%-%

　　★负荷测量精度：0.1N

　　★负荷测量精度：示值的±1%以内

　　★试验速度：1mm-50mm/min

　　★试验空间范围：200mm

　　★驱动方式：伺服电机驱动

　　★电源：单相交流220V/50HZ,电机功率550W

　　★外形尺寸：1400X1200X1500mm

　　★重量：220kg

　　Fourth,technical parameters:

　　★Large pulling force:10KN

　　★Effective detection range:1%-%of large experimental power

　　★Load measurement accuracy:0.1N

　　★Load measurement accuracy:within±1%of the indicated value

　　★Test speed:1mm-50mm/min

　　★Test space range:200mm

　　★Drive mode:servo motor drive

　　★Power supply:single-phase AC 220V/50HZ,motor power 550W

　　★Dimensions:1400X1200X1500mm

　　★Weight:220kg

　　五、仪器组成：

　　★触摸屏

　　★电源开关

　　★力值传感器

　　★施压棒

　　★承压棒

　　★主机机体

　　Fifth,the instrument composition:

　　★Touch screen

　　★Power switch

　　★force value sensor

　　★pressure bar

　　★pressure bar

　　★Host body
