腾达试验仪器厂：

　　一，产品简介：

　　试验机是**检测仪器，用于金属，非金属材料的拉伸、压缩、弯曲、剪切等力学性能试验。使用前务必仔细阅读说明书。为油缸下置，拉压空间间距电动调节，双丝杠、双空间框架结构。测量单元采用优质电子元器件组成的单片微机屏显仪器表，可保证设备可靠运行和准确测量。

　　Product introduction:

　　The testing machine is a testing instrument for the tensile,compression,bending,shearing and other mechanical performance tests of metallic and non-metallic materials.Be sure to read the instructions carefully before use.It is under the oil cylinder,the space between tension and pressure is electrically adjusted,and the double screw and double space frame structure.The measurement unit uses a single-chip microcomputer screen display instrument composed of high-quality electronic components to ensure reliable operation and accurate measurement of the device.

　　二，主要特点：

　　试验机采用液压加荷、操作方便、精度准确，可用于金属材料在静力作用下做拉伸、压缩或弯曲试验，亦可做混凝土、砖、石等建筑材料的试验及构建试验，并备有冷弯附件，兼做减数材料的试验。本试验机适用于科研机关，基本建设单位、冶金和机械制造厂以及大专院校的实验室之需要。试验机具有试验力、变形、加荷曲线显示，自动记录试验数据，打印试验结果，可以与计算机通讯，通过计算机显示、处理数据。本产品符合GB/T228、GB/T2611、GB/T3159标准要求。

　　Second,the main features:

　　The testing machine adopts hydraulic loading,convenient operation and accurate accuracy.It can be used for tensile testing,compression testing or bending testing of metal materials under static force.There are cold-formed attachments,which can also be used for testing of subtractive materials.This testing machine is suitable for the needs of scientific research institutions,capital construction units,metallurgical and machinery manufacturing plants,and laboratories of colleges and universities.The testing machine has test force,deformation,and loading curve display,automatically records test data,prints test results,can communicate with a computer,and display and process data through the computer.This product meets the requirements of GB/T228,GB/T2611,GB/T3159.

　　三，技术参数：

　　★大实验力（KN)：100-600

　　★试验机的示值精度：1级

　　★拉伸夹头间大距离:600

　　★两丝杠间有效距离(mm):340

　　★扁试样夹持厚度(mm):0-15

　　★扁试样夹持的大宽度(mm)：58

　　★圆试样夹持直径(mm)：φ6-φ22

　　★上下压板间大距离(mm)：530

　　★上下压板尺寸(mm)：φ100

　　★弯曲试验时两支点间距离(mm)：30-300

　　★变曲试验时支滚大宽度(mm)：115

　　★弯曲试验大高度(mm)：90

　　★工作活塞直径×行程(mm)：φ80x150

　　★工作台上升速度(mm/min)：0-170

　　Third,the technical parameters:

　　★Large experimental force(KN):100-600

　　★Indication accuracy of the test machine:Class 1

　　Large distance between stretching chucks:600

　　★Effective distance between two screws(mm):340

　　★Flat specimen clamping thickness(mm):0-15

　　★Large width of flat specimen clamping(mm):58

　　★Clamping diameter of round specimen(mm):φ6-φ22

　　★Large distance between upper and lower pressure plate(mm):530

　　★Size of upper and lower pressure plate(mm):φ100

　　★Distance between two fulcrum points during bending test:30-300

　　★Large roll width(mm)during deflection test:115

　　★Bending test height(mm):90

　　★Working piston diameter×stroke(mm):φ80x150

　　★Worktable lifting speed(mm/min):0-170

　　四，产品结构：

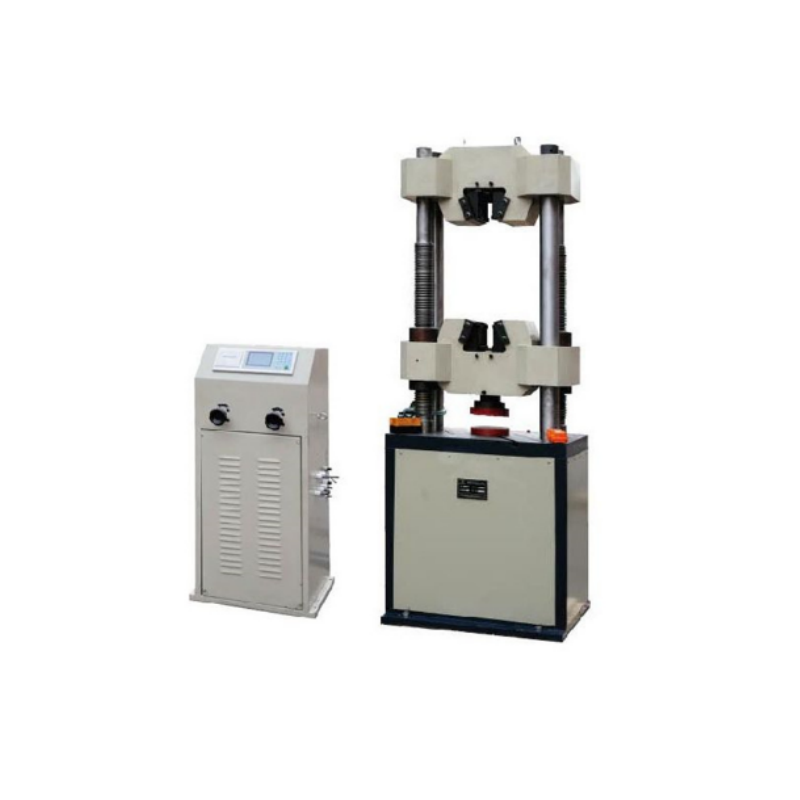

　　试验机分为主机和测力计两部分。由于该机的工作油缸设置在主机的底部，主机高度适中，则更有利于进行压缩，拉伸试验，如配以各种附件，该机可扩大使用范围，进行多种工艺试验。

　　Product structure:

　　The testing machine is divided into two parts,the host and the dynamometer.Because the machine's working cylinder is set at the bottom of the main machine and the height of the main machine is moderate,it is more conducive to compression and tensile tests.If equipped with various accessories,the machine can expand the scope of use and perform a variety of process tests.
