详情说明 / Details

  腾达试验仪器厂:


  一、产品简介:


  依据行业标准JC482-485-92设计制造的流平性模适用于建筑密封膏的流平性试验取样用。150×20×15mm流平性试模流平性模具下垂度试模建筑密封材料流平性模具。


  the product introduction:


  The leveling mold designed and manufactured according to the industry standard JC482-485-92 is suitable for the sampling of the leveling test of building sealing paste.150×20×15mm leveling test mold Leveling mold sag test pattern Building sealing material leveling mold.


  二、使用方法:


  ★将试料和模具在5±2oC的低温线内放置30min。


  ★再模具内衬以0.1mm左右的油纸,油纸四周翻边到模具外,内衬油纸要展平。


  ★沿模具的一端到另一端注入约20ml的试料,在5±2oC温度下静止放置1h,观察其表面是否平整光滑。


  Second,the method of use:


  ★Place the sample and mold in a low temperature line of 5±2oC for 30min.


  ★The inner lining of the mold is about 0.1mm oil paper,the oil paper is turned around the mold,and the inner lining oil paper is flattened.


  ★Inject about 20ml of sample along one end of the mold to the other end,and stand it at 5±2oC for 1h,and observe whether the surface is smooth and smooth.


  三、器具构成:

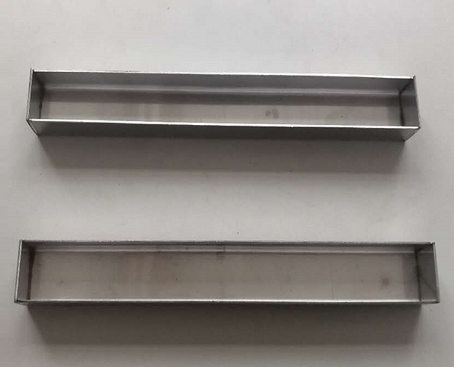

  本器具主要由内部尺寸为150*20*15mm的槽体构成。


  Third,the appliance composition:


  The appliance is mainly composed of a tank having an inner size of 150*20*15 mm.


  四、建筑密封材料检测用下垂度试模胶下垂度试模流平性模具


  200mm*20mm*10mm


  不锈钢铝制


  下垂度模具:长度(150±0.2)mm两端开口,其中一端底面延伸(50±0.5)mm,槽的横截面内部尺寸和宽(20±0.2)mm,深(10±0.2)mm。


  150*20mm下垂度模具下垂度试模流平性试模下垂度试模挂架建筑密封材料检测用下垂度试模


  无气孔且光滑的槽型模具,宜用阳极氧化或非阳极氧化铝合金制成,长度150mm正负0.2mm,两端开口,其中一端底面延伸50mm正负0.5mm,槽的横截面内部尺寸为宽20mm正负0.2mm,深10mm正负0.2mm,其他尺寸的模具也可以实用例如10正负0.2mm,深10正负0.2mm。


  Fourth,the construction of sealing materials testing sag test mode rubber sag test mold leveling mold


  200mm*20mm*10mm


  Stainless steel


  Sag mold:length(150±0.2)mm open at both ends,one end of the bottom extends(50±0.5)mm,the internal dimensions of the cross section of the groove and width(20±0.2)mm,deep(10±0.2)mm.


  150*20mm sag mold sag test slab leveling test sag sag test slab sag test sag


  Non-porous and smooth grooved mold,should be made of anodized or non-anodized aluminum alloy,length 150mm plus or minus 0.2mm,open at both ends,one end of the bottom surface extends 50mm plus or minus 0.5mm,the inner dimension of the cross section of the groove is Width 20mm plus or minus 0.2mm,depth 10mm plus or minus 0.2mm,other sizes of mold can also be practical,for example,10 plus or minus 0.2mm,depth 10 plus or minus 0.2mm.


  五、注意事项:


  使用完毕后用溶剂擦干净,并干燥后进行保存。


  Fourth,note:


  After use,wipe with a solvent and dry before storing.
