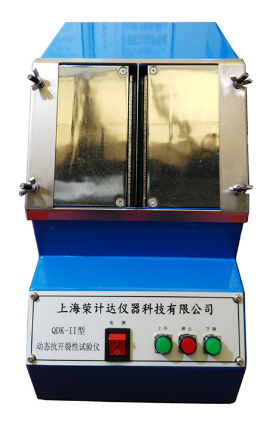

　　自动动态抗开裂测试仪是**涂层检测仪器，适用于测试以水泥、聚合物粉末、合成树脂乳液或其它材料为主要粘结剂，配以填料、助剂等组成的外墙找平腻子开裂性测试。自动动态抗开裂测试仪依据JG/T157-2004行标设计制造。

　　The automatic dynamic crack resistance tester is a coating testing instrument,suitable for testing cement,polymer powders,synthetic resin emulsions or other materials as the main binder,with fillers,additives,etc.Sex test.Automatic dynamic anti-cracking tester is designed and manufactured according to JG/T157-2004 standard.

　　自动动态抗开裂测试仪工作原理：

　　★由于建筑物的不均匀的干湿变化、热胀冷缩、结构沉降及设计、施工上的不完整等原因,几乎所有建筑都不同程度地存在表面毛细裂缝、表面贯通裂缝、结构性裂缝。

　　★外墙裂缝不仅大大降低了对建筑物外墙的保护作用，也给涂饰面的美观造成了一定的影响。为了弥补上述之缺陷，在涂刷外墙乳胶漆之前，必先在墙体涂刮一层外墙腻子；而外墙腻子的质量优劣，则是关键之关键。

　　★测试仪依据JG/T157-2004行标设计制造的QDK型自动动态抗开裂测试仪适用于测试以水泥、聚合物粉末、合成树脂乳液或其它材料为主要粘结剂，配以填料、助剂等组成的外墙找平腻子。

　　★电机通过齿轮减速后拖动顶杆作上升运动，刃口产生上顶力，使石棉水泥板在规定的区域内逐步产生细微裂纹并控制裂纹缓慢扩展，观察腻子层的开裂情况，以此表征腻子抵抗基材裂纹扩展的能力。

　　Working principle of automatic dynamic anti-cracking tester:

　　★Due to the uneven wet and dry changes of buildings,thermal expansion and contraction,structural settlement and incomplete design and construction,almost all buildings have surface capillary cracks,surface through cracks,and structural cracks to varying degrees.

　　★The cracks on the external wall not only greatly reduce the protective effect on the external wall of the building,but also affect the appearance of the painted surface to a certain extent.In order to make up for the above defects,it is necessary to apply a layer of external wall putty to the wall before painting the latex paint on the external wall;the quality of the external wall putty is the key.

　　★The tester is designed and manufactured according to the JG/T157-2004 standard QDK automatic dynamic crack resistance tester suitable for testing cement,polymer powder,synthetic resin emulsion or other materials as the main binder,with fillers,additives Wait for the composition of the exterior wall to level the putty.

　　★The motor drags the ejector rod for upward movement after decelerating through the gear,and the cutting edge generates upward force,which makes the asbestos cement board gradually generate fine cracks in the specified area and controls the cracks to slowly expand.Observe the cracking of the putty layer to characterize it.The ability of a putty to resist crack propagation in a substrate.

　　QDK自动动态抗开裂测试仪主要技术指标：

　　★刃口长：150mm

　　★刃口夹角：30度

　　★大升程：20mm

　　★上升速率：3mm/min

　　★型框规格：200×150×2（mm）

　　★外形尺寸：200X150X2mm

　　★重量：75kg

　　Main technical indicators of QDK automatic dynamic crack resistance tester

　　★Blade length:150mm

　　★Blade angle:30 degrees

　　★Large lift:20mm

　　★Rising rate:3mm/min

　　★Frame specifications:200×150×2(mm)

　　★Dimensions:200X150X2mm

　　★Weight:75kg

　　QDK自动动态抗开裂测试仪使用试验方法：

　　★将型框放在200×150（mm）的石棉水泥板上。在将配制好的腻子涂刮在型框内。

　　★将型框取下，涂刮好的石棉水泥板应在标准环境下养护7d。每一样品应同时制备3块试板。

　　★将养护好的试板卡固在本仪器的工作台面上。启动电源开关后在启动上升开关，此时刃口缓慢上升。

　　★刃口继续缓慢上升。此时应注意观察石棉板的空白区域，当发现裂纹出现后，使用立式读数显微镜观察并随时记录裂纹宽度，至腻子层开裂前为止。启动停止开关后，刃口不再上升。

　　★记录腻子层开裂前，石棉水泥板裂缝的A大宽度。**到0.02 mm。

　　★启动下降开关，使刃口退回原位。

　　★松开试板卡固螺母及压板，取下试板。在放入另一块试板，重复上述试验步骤。

　　QDK automatic dynamic crack resistance tester using test method

　　★Place the frame on an asbestos-cement board of 200×150(mm).Squeeze the putty into the frame.

　　★Remove the frame.The asbestos-cement board coated should be cured under standard environment for 7 days.Three test plates should be prepared for each sample.

　　★Fix the cured test plate on the work surface of the instrument.After the power switch is turned on,the rising switch is started,and the cutting edge rises slowly at this time.

　　★The edge continues to rise slowly.At this time,pay attention to the blank area of the asbestos board.When cracks are found,use a vertical reading microscope to observe and record the crack width at any time until the putty layer cracks.After activating the stop switch,the cutting edge no longer rises.

　　★Record the large A width of the crack in the asbestos cement board before the putty layer cracks.**to 0.02 mm.

　　★Activate the lowering switch to return the cutting edge to its original position.

　　★Loosen the retaining nut and pressure plate of the test plate and remove the test plate.After placing another test plate,repeat the above test steps.

　　QDK自动动态抗开裂测试仪结果判断：

　　三块试板中以数值较近的每块试板的测试结果的算术平均值作为A终结果。

　　Judgment of QDK Automatic Dynamic Crack Resistance Tester

　　Among the three test plates,the arithmetic average of the test results of each test plate with the nearest value is taken as the final A result.
