　　一、产品概述：

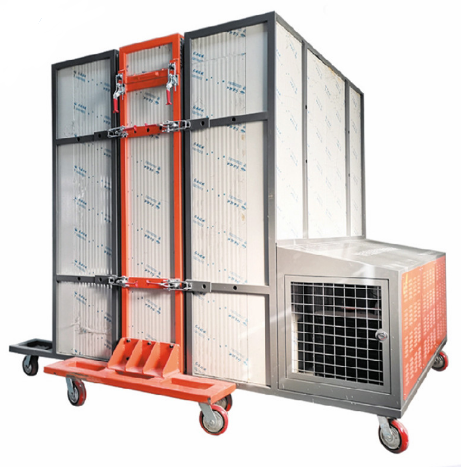

　　智能型墙体稳定态热传递试验机采用标定热箱和防护热箱法兼容原理，用于建筑墙体及板状保温材料的传热系数检测。设备利用计算机自动控制，数据采集、温度控制、曲线显示和结果打印等全部测试过程均自动完成，测量时间短、速度快、数据准确、自动化程度高、噪音低。

　　1.Product overview:

　　The intelligent wall steady-state heat transfer testing machine adopts the compatible principle of the calibration hot box and the protective hot box method,and is used for the detection of the heat transfer coefficient of the building wall and the plate-shaped insulation material.The equipment is automatically controlled by a computer,and all test processes such as data acquisition,temperature control,curve display and result printing are completed automatically.The measurement time is short,the speed is fast,the data is accurate,the degree of automation is high,and the noise is low.

　　二、适用标准：

　　GB/T13475-2008《绝热稳态传热性质的测定标定和防护热箱法》

　　JG/T 10294-2008《绝热材料稳态热阻及有关特性的测定防护热板法》

　　2.Applicable standards:

　　GB/T13475-2008"Determination of adiabatic steady-state heat transfer properties,calibration and protective hot box method"

　　JG/T 10294-2008"Determination of Steady State Thermal Resistance and Related Characteristics of Thermal Insulation Material Protective Hot Plate Method"

　　三、技术参数：

　　1、热室温度：60℃；

　　2、热室温度控制精度：±0.2℃；

　　3、冷室温度：-20℃；

　　4、冷室温度控制精度：±0.2℃；

　　5、试件计量尺寸：1000mm×1000mm；1200mm×1200mm；1500mm×1500mm（可选择）；

　　6、加热功率：500W；

　　7、供电电源：AC380V三相五线制。

　　3.Technical parameters:

　　1.Hot chamber temperature:60℃;

　　2.The temperature control accuracy of the hot chamber:±0.2℃;

　　3.Cold room temperature:-20℃;

　　4.Temperature control accuracy of cold room:±0.2℃;

　　5.Measurement size of test piece:1000mm×1000mm;1200mm×1200mm;1500mm×1500mm(optional);

　　6.Heating power:500W;

　　7.Power supply:AC380V three-phase five-wire system.
