腾达试验仪器厂：

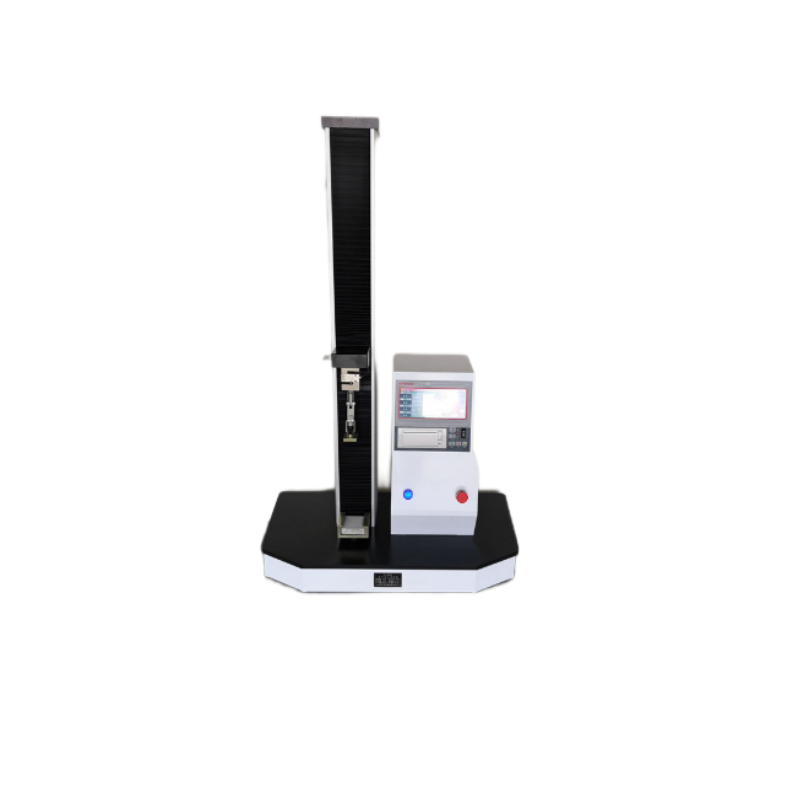

　　触摸屏拉力试验机适用于各种防水卷材、涂料.橡胶、编织物及小截面金属细丝。也可用于符合本试验机条件时的其它试验，使用前务必仔细阅读说明书。并由**实验人员操作，以避免操作不当引起的伤害。如需了解更多资料请与我公司客服人员联系。

　　Waterproof coil tensile tester is suitable for various waterproof coils,coatings,rubbers,braids and small cross-section metal filaments.It can also be used for other tests that meet the conditions of this testing machine.Please read the instructions carefully before use.It is operated by**experimental personnel to avoid injury caused by improper operation.For more information,please contact our customer service staff.

　　触摸屏拉力试验机技术参数：

　　★大试验力：5000N

　　★试验力有效测量范围：80N—2000N

　　★试验力小分辨力：1N

　　★拉伸夹具间A大距离：800mm

　　★试验速度：2-500mm可调

　　★电源：220V±10％

　　Technical parameters of waterproof coil tensile tester:

　　★Large test force:5000N

　　★Effective measurement range of test force:80N—2000N

　　★small test force resolution:1N

　　★A large distance between stretching fixtures:800mm

　　★Test speed:2-500mm adjustable

　　★Power supply:220V±10%

　　触摸屏拉力试验机结构：

　　★本试验机由底座、箱体立柱、夹头、丝杠、轨道、电子测力系统、位移测量系统等零部件组成。

　　★机械加荷系统由下箱体内减速箱及丝杠组成。

　　★夹头由支架、压板、支柱、轧片、弹簧等主要零件组成，上夹头与测力体相连，通过它所夹持的试件向上运动实现测力传递。

　　Structure of waterproof coil tensile tester

　　★This testing machine consists of base,box post,chuck,lead screw,rail,electronic force measurement system,displacement measurement system and other components.

　　★The mechanical loading system is composed of a reduction box and a screw in the lower box.

　　★The chuck is composed of the main parts such as bracket,pressure plate,pillar,rolled sheet,spring,etc.The upper chuck is connected with the force measuring body,and the force transmission is achieved by the upward movement of the specimen held by it.
